12V 200 Watt Mono Solar Panel (2 Pieces 9BB 100W)

Regular price $206.99
Sale price $206.99 Regular price
Unit price
About this item

  • New Design】Face Lift for 10% reduction in the panel length. Higher cell efficiency by using 9 busbars technology. Compared with 5BB solar panel cells, the 9BB solar cell has a better and longer lifespan.
  • Dimension】38.58*20.87*1.18Inch. High winds (2400PA) and snow loads (5400PA)
  • Maximum power (Pmax)】100W, Voltage at Pmax (Vmp):19.23V, Current at Pmax (Imp): 5.21A
  • Easy Installation】Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft solar connector cable
  • Warranty】2-year limited material and workmanship warranty. 10-year 90% output warranty. 25-year 80% output warranty.
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery:Jul 20 - Jul 24

  • Free Shipping & Returns: On all orders over $100

200w solar panel

12V 200 Watt Mono Solar Panel (2 Pieces 9BB 100W)

Regular price $206.99
Sale price $206.99 Regular price
Unit price
Description
Shipping and Refund
Warranty Policy
the best 200w solar panel

This 200W solar panel with high efficiency and durability is your ideal choice for green energy. Adopting advanced photovoltaic technology with high conversion rate, it can output power stably under different light conditions. Lightweight design, easy to install and carry, suitable for home, outdoor camping and power supply in remote areas. Environmentally friendly and energy saving, no noise and no pollution, contributing a green power for the earth. Choose us and let the sunshine become the sustainable energy for your life.

Product Features

1.Versatile
  • Supported by a number of mounting options, the panel can adapt flat surface mounts (Z-bracket, tilt-adjustable bracket) and pole/wall installation
  • Despite the smaller wattage output, the panel can be used for many applications such as gate openers, security systems, solar lighting, electric fences, battery maintainer, etc.
2.Easy Installation
  • The panel comes with four easy mounting holes with a diameter of 7 x 12mm, and two grounding holes with a diameter of 5mm
  • With a pre-attached 3ft extension cable, the panel can be quickly connected to other items
  • Compatible with the Newpowa z-bracket, tilt-adjustable mount, and pole/wall bracket, the panel can be installed for various applications
3.Durable
  • Rugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)
  • The heavy-duty anodized frame provides strong protection for the panel structure

Product Specification

  • Dimension: 38.58*20.87*1.18 inches
  • Weight: 13.2lbs
  • Max Power Output(W): 100W
  • Voltage MPP Vmp(V): 19.23V
  • Current MPP Imp(A): 5.21A
  • Voltage Open Circuit Voc(V): 22.12V
  • Short Circuit Current Isc(A): 5.5A

How To Wiring Mismatched Solar Panels Without Output Loss

How To Wiring Mismatched Solar Panels Without Output Loss

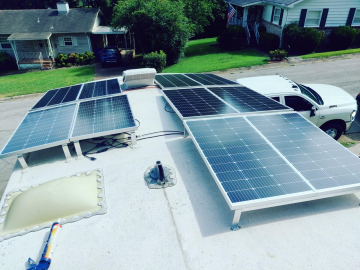

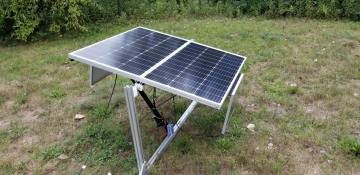

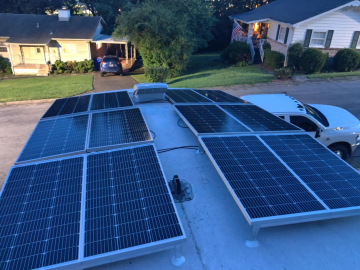

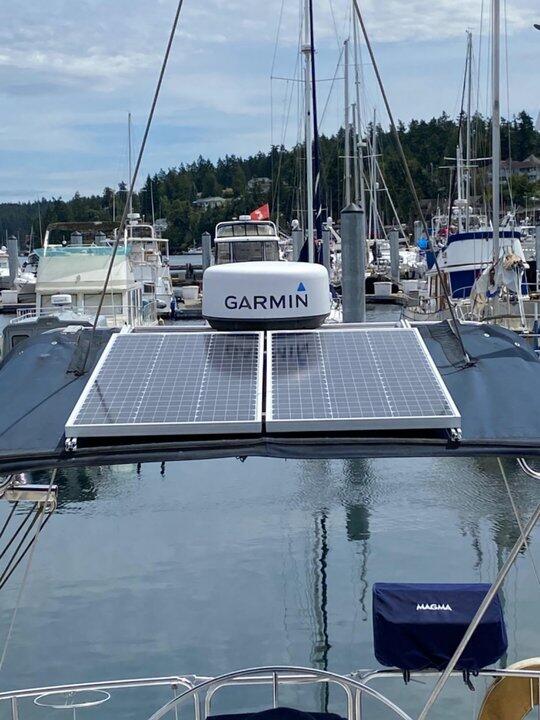

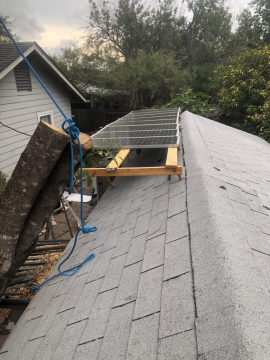

200w solar panel application scenes

This 200W solar panel is suitable for many scenarios. In RV travel, it provides continuous power for your electrical equipment, ensuring a worry-free trip. At home, it serves as a backup power source to ensure the normal operation of key equipment. In marine, it powers the navigation system to ensure safe navigation. For farms, it is a sustainable energy solution to meet the needs of various agricultural equipment. Whether outdoors or indoors, this solar panel can bring you green and stable power support.

200w solar panel application scenes

FAQ

  1. Q: What is the service life of this 200W solar panel?
    A: The exact lifespan depends on a variety of factors, such as the environment in which it is used and how it is maintained. Generally speaking, our solar panels are designed to last 25+ years, but performance may gradually degrade over time.
  2. Q: How are these solar panels installed?
    A: The installation process is relatively simple, but you need to follow the steps in the product manual. Make sure you measure the space dimensions and prepare the required tools and materials before installation.
  3. Q: Do solar panels require regular maintenance?
    A: Yes, in order to maintain the optimal performance of the solar panel, it is recommended that it be cleaned and maintained on a regular basis. Use a soft cloth and water to gently wipe the surface, avoid using hard objects or corrosive solvents.
  4. Q: Can solar panels work on cloudy and rainy days?
    A: Although solar panels work less efficiently on cloudy and rainy days, they can still produce some electricity. The exact output depends on the light intensity.
  5. Q: Can this solar panel work with other brands of inverters or charge controllers?
    A: Generally, our solar panels can be used with other brands of inverters or charge controllers. However, please make sure to check compatibility before connecting.
  6. Q: How can I tell if the solar panel is damaged?
    A: If the solar panel shows cracks, color changes or abnormal hot spots, it may be a sign of damage. In addition, if its output voltage and current do not match the specifications, it may also be an indication of damage.
  7. Q: How much wind pressure and snow load can this solar panel withstand?
    A: The specific wind pressure and snow load that the solar panel can withstand depends on the product design and installation method. Please refer to the relevant parameters and installation guidelines in the product manual.
  8. Q: What factors affect the output efficiency of solar panels?
    A: The output efficiency of solar panels is affected by a variety of factors, including light intensity, temperature, and shadow shading. For optimal performance, make sure the solar panel is installed in a well-lit, unshaded area.
